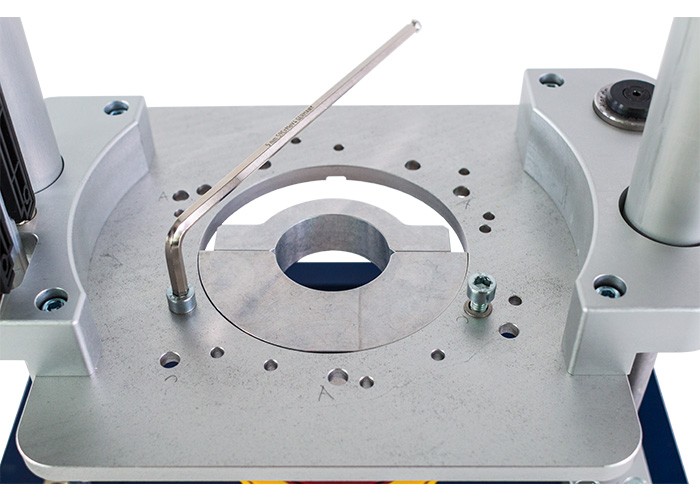

By means of this adapter a mounting adapter for the router lifts, motors such as Suhner and Kress can now be used perfectly on previous lift constructions. Perfect holding force due to perfect form closure. No routing depth loss, simple cutter change above the table top. - Genuinely Made in Germany!

Technical data

• Clamping neck Ø 43 mm/ Tolerances of the motor neck -0,135 + 0,015
• Required clamping height of the motor: 20 mm
• Max. Weight of the motor: 5 kg
• NOTE: Use is only permitted in combination with RL1.0 or RL2.0.
• Not suitable for RL2.0-MINI
• Further advantages and characteristics:
• No loss of routing depth!
• Easiest cutter change thanks to the spindle and collet still looking out from above!
• Quality from Germany - first-class, solid construction. Construction made of high-quality steel.
• Installation made easy - Simple installation of the adapter on the milling lift (installation instructions enclosed).
• No need to drill your own holes - mounting holes for quick installation are already provided.

Approved motors

• Kress: 530 FM, 800 FME, 1050 FME
• MAFELL: FM 1000
• SUHNER: UAC 30 RF, UAD 25 RF, UAK 30 RF, UAL 23 RF
• If your motor is not listed, please check the tolerances of the clamping neck to your model as specified by the manufacturer or contact us.
• Not approved: Trend T4EK

Scope of Delivery

• 1x adapter AD43
• Mounting screws and washers
• User Manual
